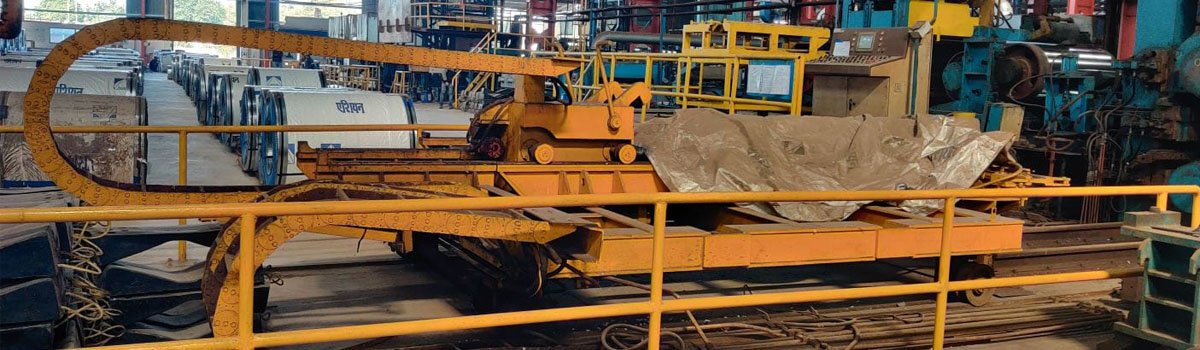

CS75 A / B / K Metal Drag Chain

CS75 A/B/K Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

Chain Example

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch

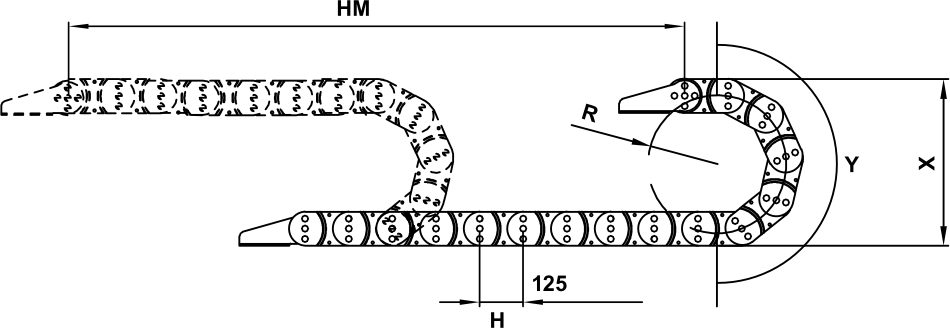

Chain Formula Diagram

Openable From Inside

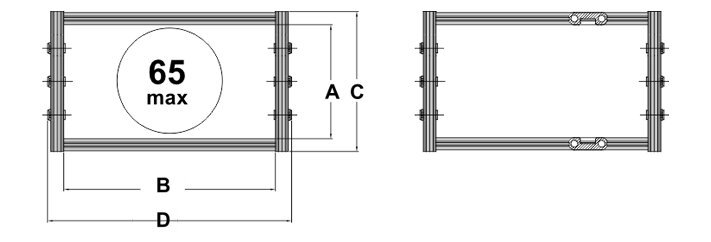

CS75
Inner height
A
Open series
200
Inner width
R150
Bending radius
CS75 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS75 A 75 100-800 97 132-832 150-450

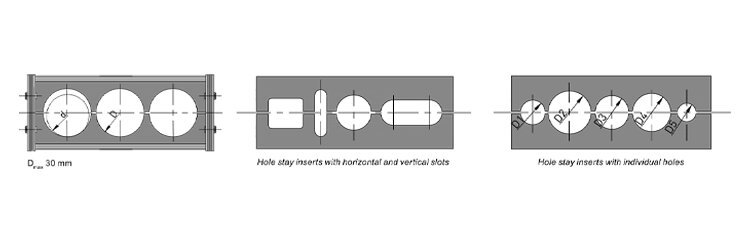

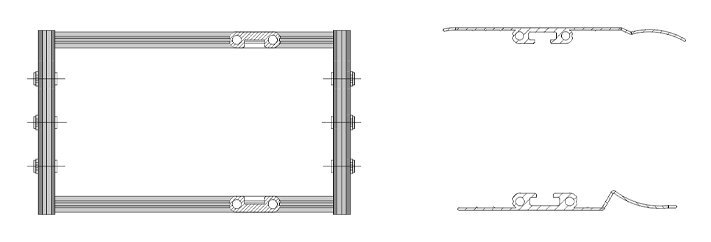

Aluminium Special Designed Series for your Cables and Hose holes

CS75
Inner height
B
Special designed series
200
Inner width
R150
Bending radius
CS75 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS75 B 75 100-800 97 132-832 150-450

Openable From Inside

CS75
Inner height
K
Closed series
200
Inner width
R150
Bending radius
CS75 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS75 K 75 100-800 97 132-832 150-450

Bending Radius

150 200 250 300 450
H(mm) 125
X(mm) 400 500 600 700 1000
Y(mm) 471 628 785 942 1413

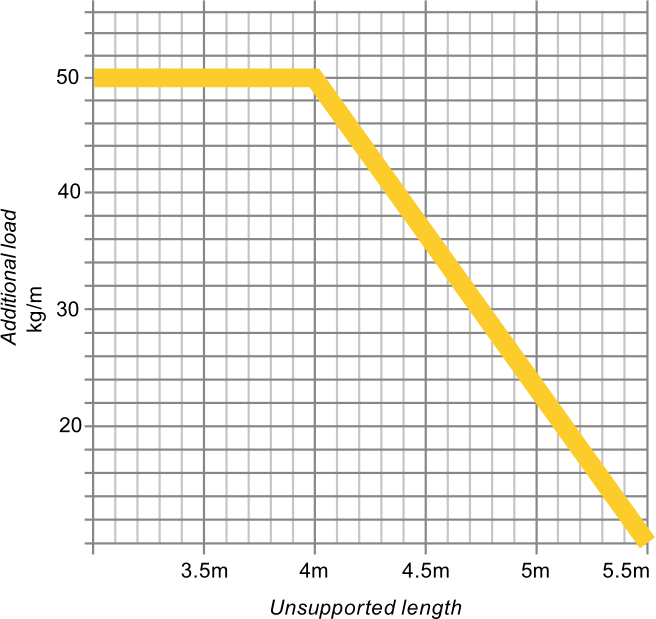

Load Diagram

Load Diagram

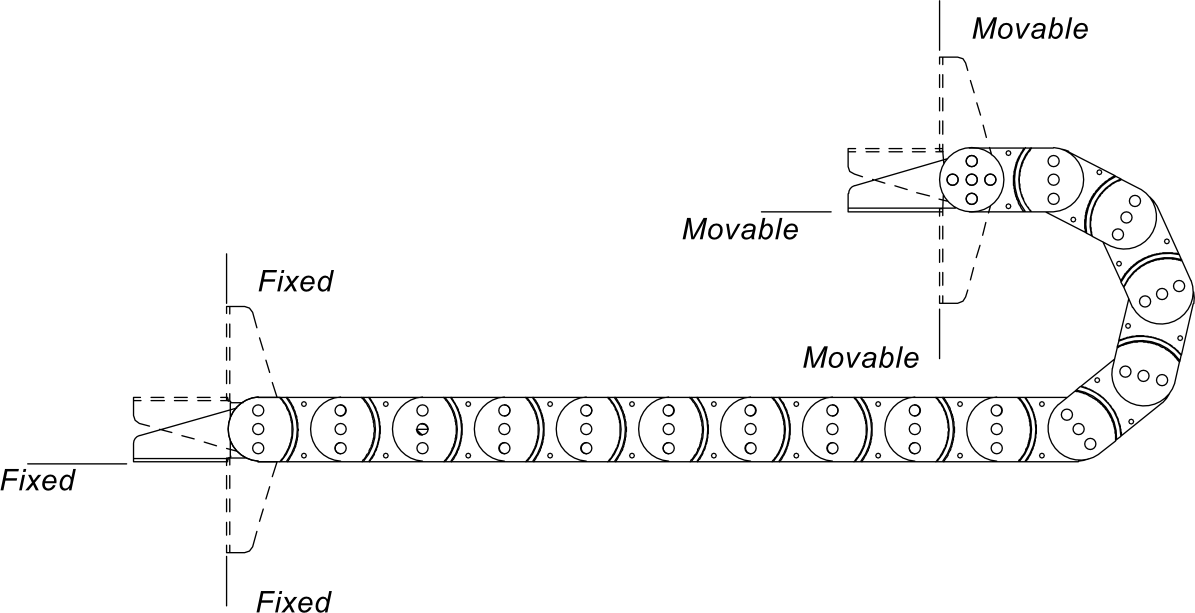

Steel End Connector Assembly

Connector 1
