CS35 A / B / K Metal Drag Chain

CS45 A/B/K Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

Chain Example

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch

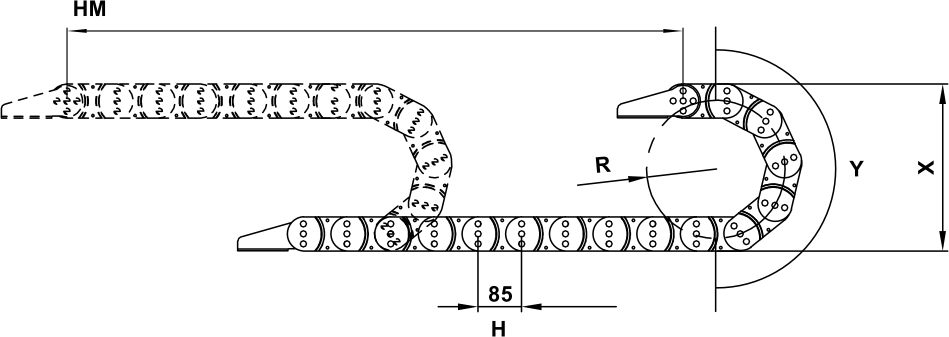

Chain Formula Diagram

Openable From Inside

CS45
Inner height
A
Open series
200
Inner width
R150
Bending radius

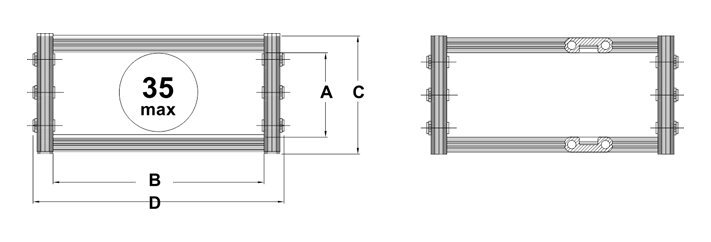

CS45 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS45 A 45 80-600 63 102-622 75-250

Aluminium Special Designed Series for your Cables and Hose holes

CS45
Inner height
B
Special designed series
200
Inner width
R150
Bending radius
CS45 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS45 B 45 80-600 63 102-622 75-250

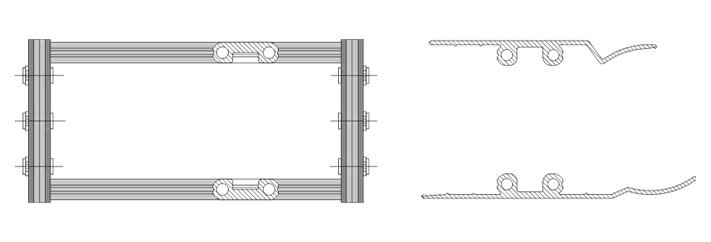

Openable From Inside

CS45
Inner height
K
Closed series
200
Inner width
R150
Bending radius
CS45 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS45 K 45 80-600 63 102-622 75-250

Bending Radius

75 100 150 200 250
H(mm) 85
X(mm) 216 163 363 463 563
Y(mm) 236 314 471 628 785

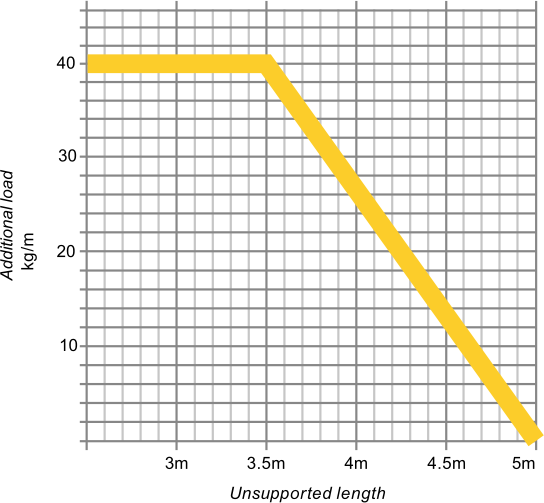

Load Diagram

Load Diagram

Steel End Connector Assembly

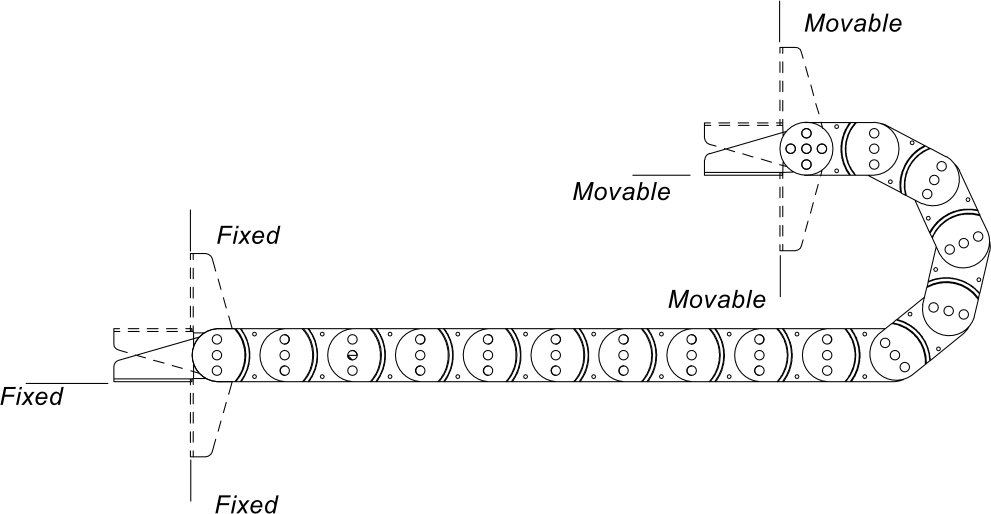

Connector 1
