CS180 A / B / K Metal Drag Chain

CS180 A/B/K Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

Chain Example

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch

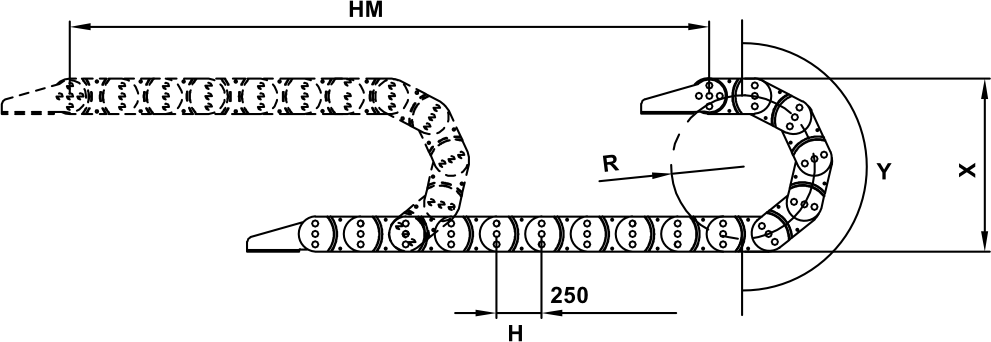

Chain Formula Diagram

Openable From Inside

CS180
Inner height
A
Open series
600
Inner width
R800
Bending radius
CS180 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS180 A 180 250-1500 220 295-1545 400-1400

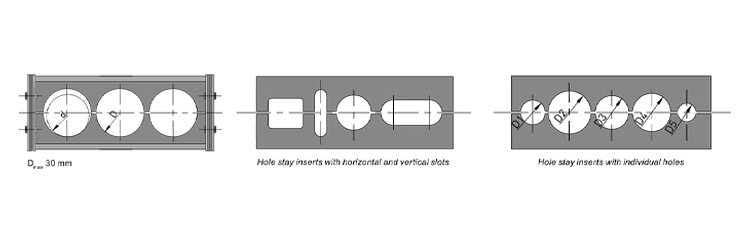

Aluminium Special Designed Series for your Cables and Hose holes

CS180
Inner height
B
Special designed series
600
Inner width
R800
Bending radius
CS180 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS180 B 180 250-1500 220 295-1545 400-1400

Openable From Inside

CS180
Inner height
K
Closed series
600
Inner width
R800
Bending radius

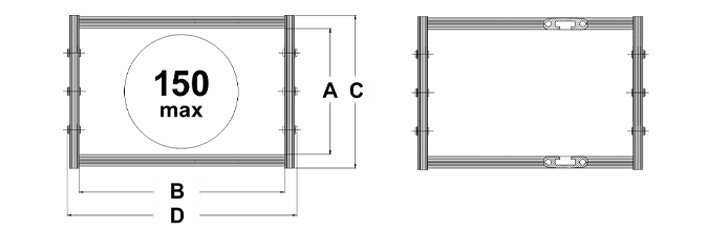

CS180 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS180 K 180 250-1500 220 295-1545 400-1400

Bending Radius

400 500 600 700 800 900 1100 1400
H(mm) 250
X(mm) 1020 1220 1420 1620 1820 2020 2420 3020
Y(mm) 1256 1570 1884 2198 2512 2816 3454 4396

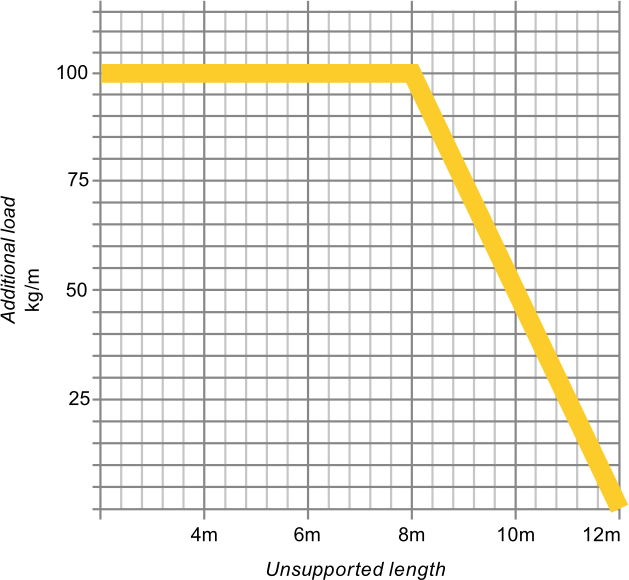

Load Diagram

Load Diagram

Steel End Connector Assembly

Connector 1
