CK07 Polymer Drag Chain

CK60 A/AL/K/Y Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

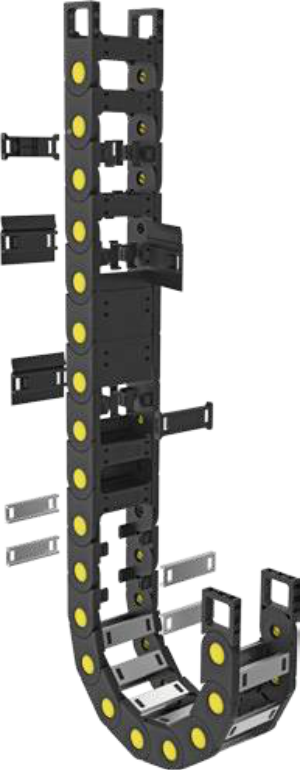

Image Representation

Chain Example

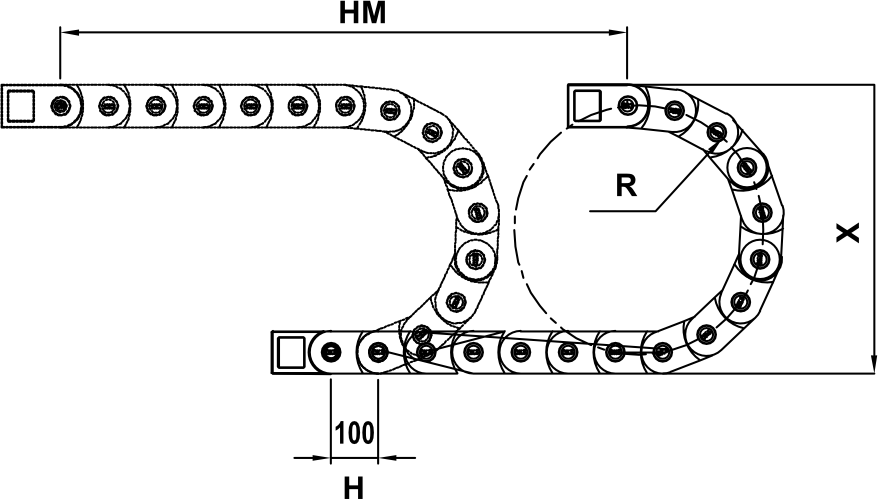

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch
Chain Formula Diagram

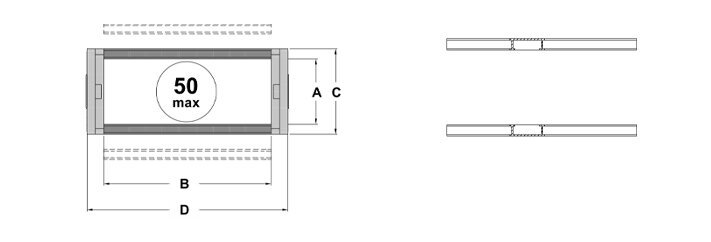

Openable From Inside

CK60
Inner height
A
Open series
080
Inner width
R100
Bending radius
CK60 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK60 A 080 R... 60 80 82 112 100,150,200,250,300 3.120
CK60 A 100 R... 180 132 3.252
CK60 A 120 R... 120 152 3.384
CK60 A 140 R... 140 172 3.494
CK60 A 160 R... 160 192 3.582
CK60 A 180 R... 180 212 3.670
CK60 A 200 R... 200 232 3.846

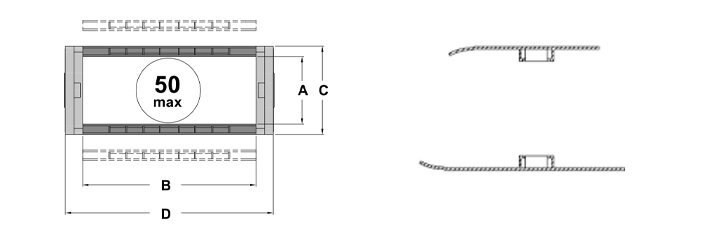

Openable From Inside and Outside

CK60
Inner height
AL
Open series
500
Inner width
R300
Bending radius
CK60 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK60 AL 250 R... 60 250 82 282 100,150,200,250,300 4.065
CK60 AL 300 R... 300 332 4.330
CK60 AL 400 R... 400 432 4.858
CK60 AL 500 R... 500 532 5.386

Openable From Inside and Outside

CK60
Inner height
K
Open series
100
Inner width
R250
Bending radius
CK60 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK60 K 100 R... 60 100 82 132 150,200,250,300 3.681
CK60 K 140 R... 140 172 4.088
CK60 K 200 R... 200 232 4.649

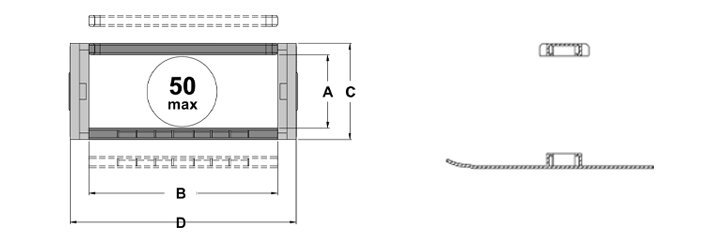

Semi-Closed

CK60
Inner height
Y
Half-Closed
100
Inner width
R250
Bending radius
CK60 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK60 Y 100 R... 60 100 82 132 150,200,250,300 3.417
CK60 K 140 R... 140 172 3.736
CK60 K 200 R... 200 232 4.220

Bending Radius

100 150 200 250 300
H(mm) 100
X(mm) 282 382 482 582 682
Y(mm) 314 471 628 785 942

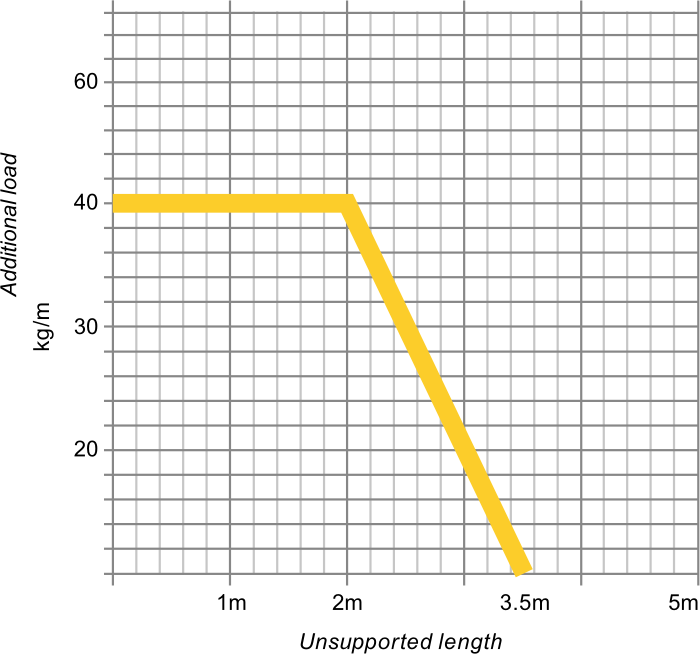

Load Diagram

Load Diagram

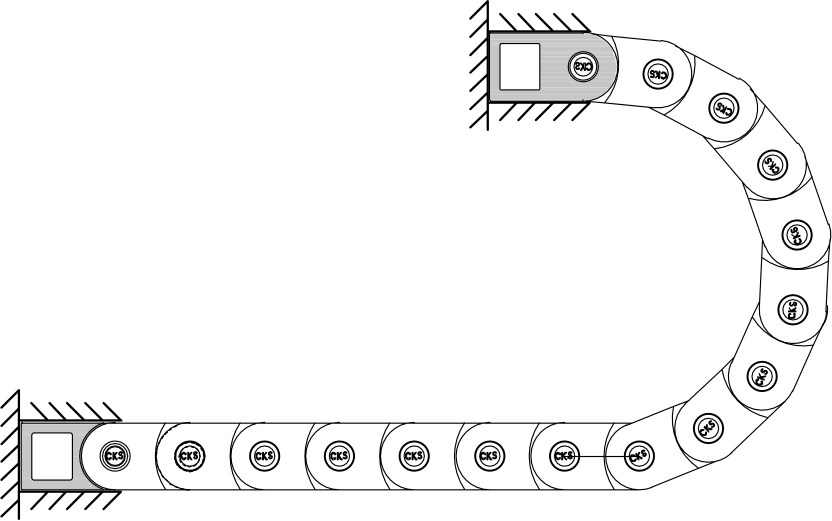

End Connector Assembly

Polymer End Bracket Assembly

Connector 1

Steel End Bracket Assembly

Connector 2
