CK07 Polymer Drag Chain

CK50 A/AL/K/Y Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

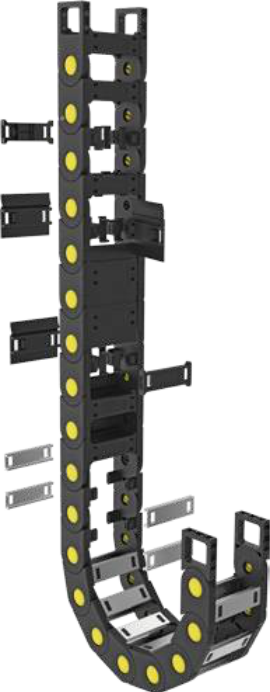

Chain Example

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch

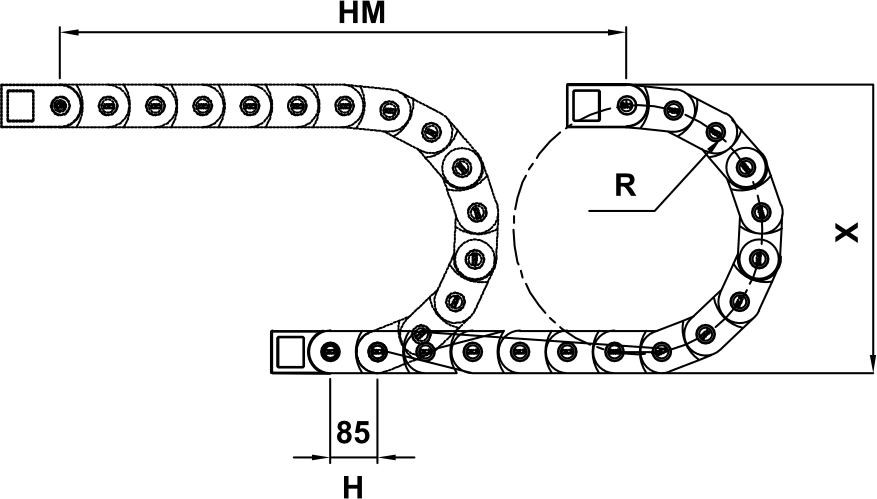

Chain Formula Diagram

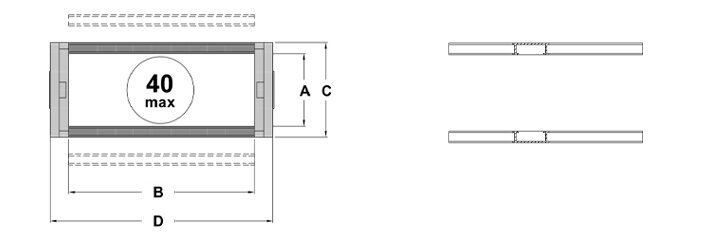

Openable From Inside

CK50
Inner height
A
Open series
080
Inner width
R100
Bending radius
CK50 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK50 A 080 R... 50 80 72 116 100,200,300,400 3.160
CK50 A 100 R... 100 136 3.292
CK50 A 120 R... 120 156 3.424
CK50 A 140 R... 140 176 3.534
CK50 A 160 R... 160 196 3.622
CK50 A 180 R... 180 216 3.710
CK50 A 200 R... 200 236 3.886

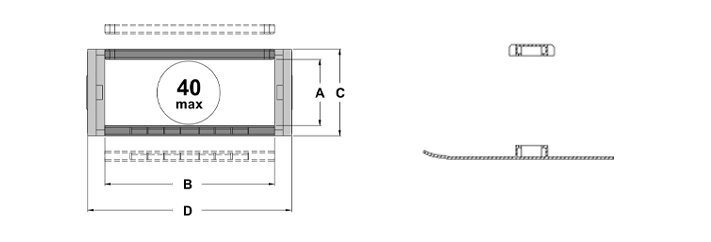

Openable From Inside and Outside

CK50
Inner height
AL
Open Series
500
Inner width
R300
Bending radius
CK50 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK50 AL 250 R... 50 250 72 206 100,200,300,400 4.165
CK50 AL 300 R... 300 336 4.430
CK50 AL 400 R... 400 436 4.958
CK50 AL 500 R... 250 536 5.486

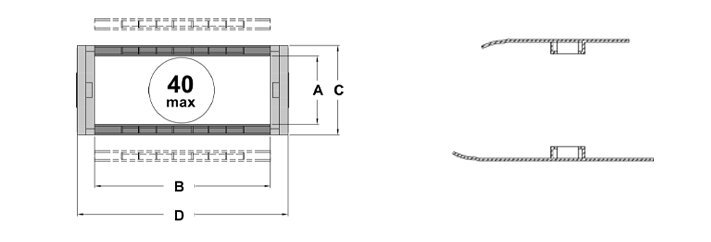

Openable From Inside and Outside

CK50
Inner height
K
Closed series
100
Inner width
R200
Bending radius
CK50 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK50 K 100 R... 50 100 72 136 200,300 3.781
CK50 K 140 R... 140 176 4.188
CK50 K 200 R... 200 236 4.749

Semi-Closed

CK50
Inner height
Y
Half-Closed
100
Inner width
R200
Bending radius
CK50 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK50 Y 200 R... 50 100 72 136 200,300 3.517
CK50 K 140 R... 140 176 3.836
CK50 K 200 R... 200 236 4.320

Bending Radius

100 200 300
H(mm) 85
X(mm) 282 482 682
Y(mm) 314 628 942

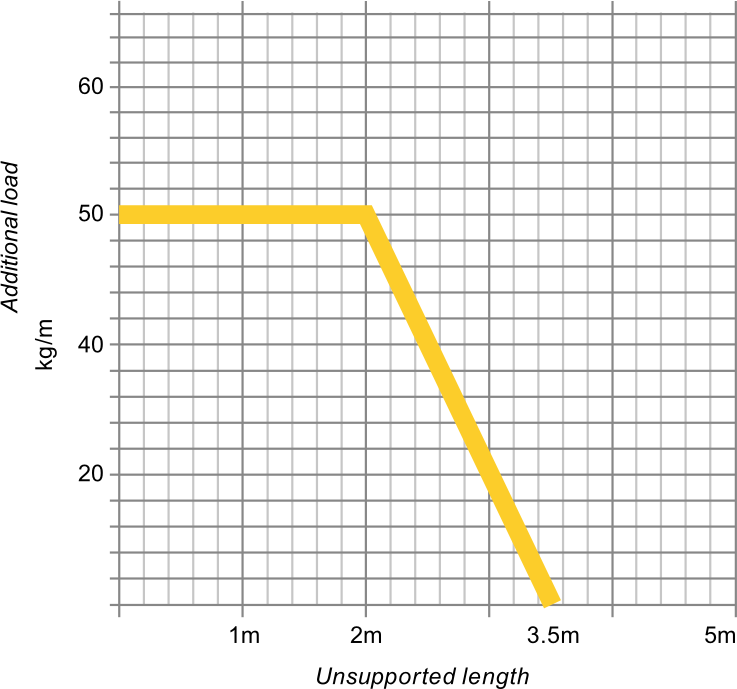

Load Diagram

Load Diagram

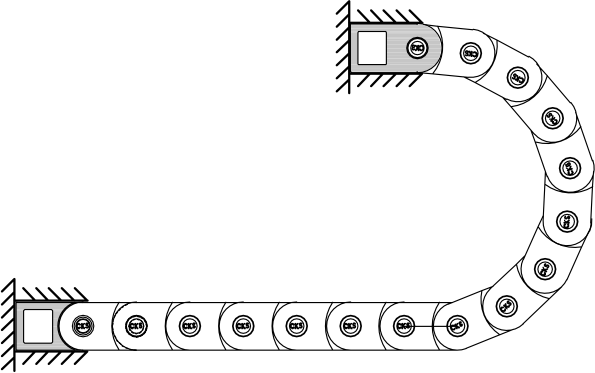

End Connector Assembly

Polymer End Bracket Assembly

Connector 1

Steel End Bracket Assembly

Connector 2
