CK07 Polymer Drag Chain

CK24 Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

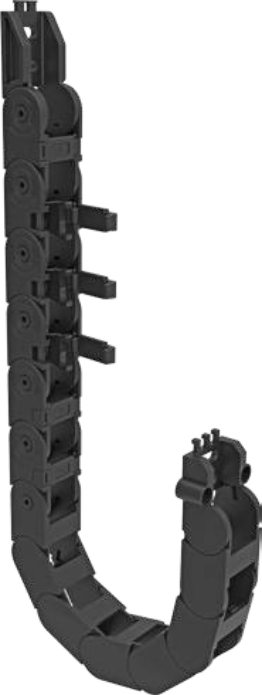

Chain Example

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch

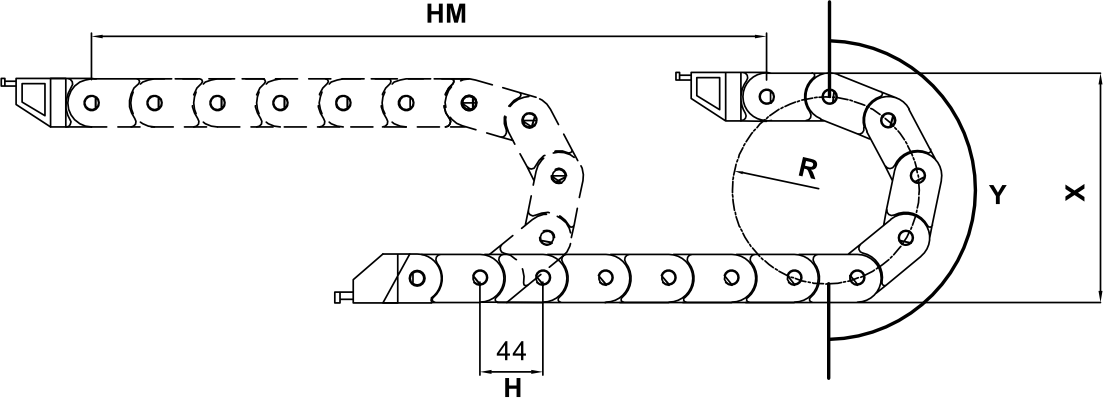

Chain Formula Diagram

Fixed Frame

CK24
Inner height
A
Open series
025
Inner width
R075
Bending radius

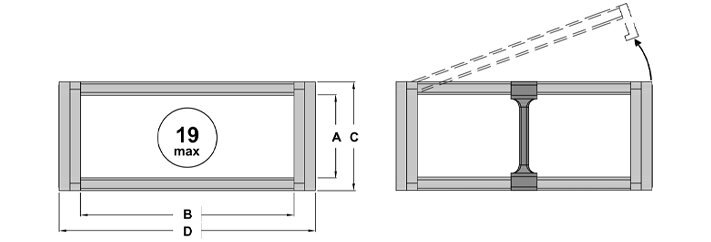

CK24 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK24 A 025 R... 24 25 32 39 75,100,125 0.582
CK24 A 040 R... 40 54 0.621
CK24 A 050 R... 50 64 0.658
CK24 A 060 R... 60 74 0.668
CK24 A 080 R... 80 94 0.685
CK24 A 100 R... 100 114 0.700

Bending Radius

40 75 100 125
H(mm) 44
X(mm) 112 182 232 282
Y(mm) 126 236 314 393

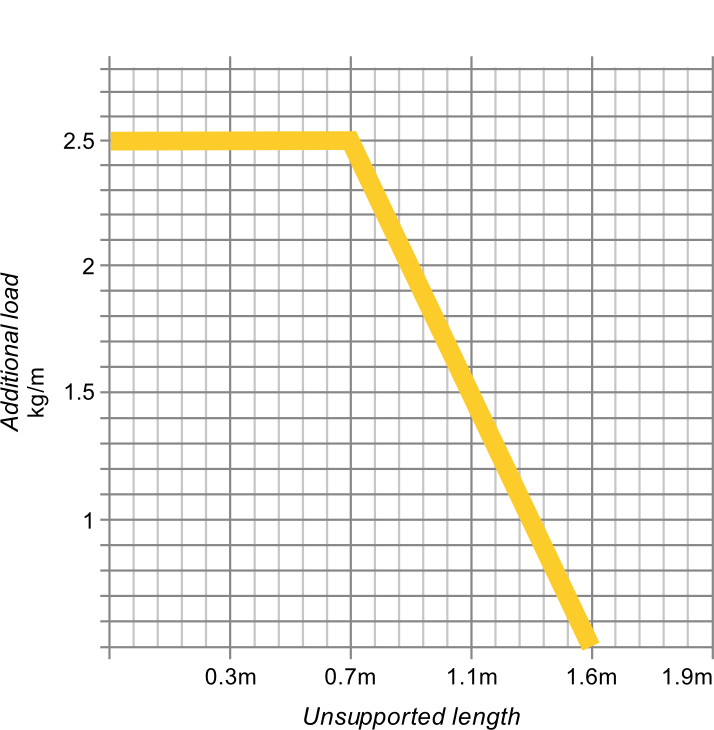

Load Diagram

Load Diagram

End Connector Assembly

Connector 1
