CK07 Polymer Drag Chain

CK07 F Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

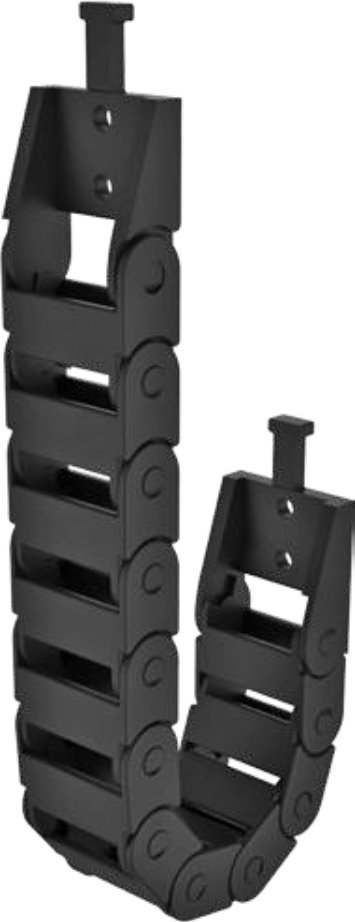

Chain Example

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch

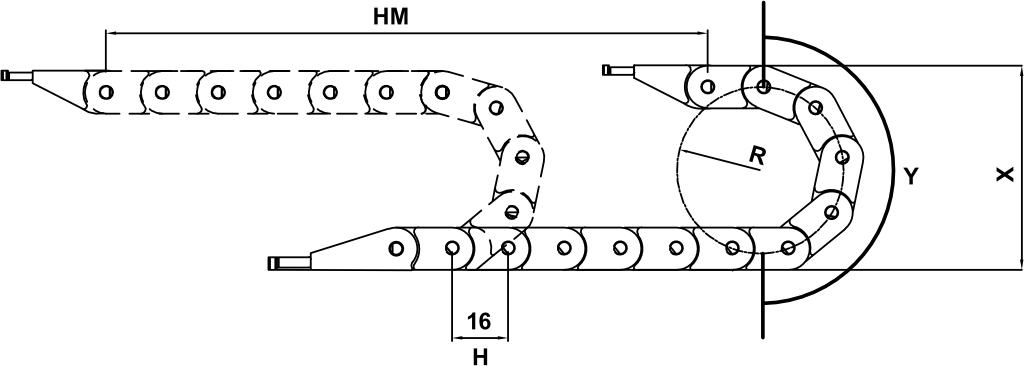

Chain Formula Diagram

Fixed Frame

CK07
Inner height
F
Open series
007
Inner width
R018
Bending radius
CK07 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
Model A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius (mm)		 W
Weight (Kg/Mt)
CK07 F 007 R018 7 7 10 12 18 0.07
CK07 F 016 R018 16 21 0.07

Bending Radius

18
H(mm) 16
X(mm) 46
Y(mm) 57

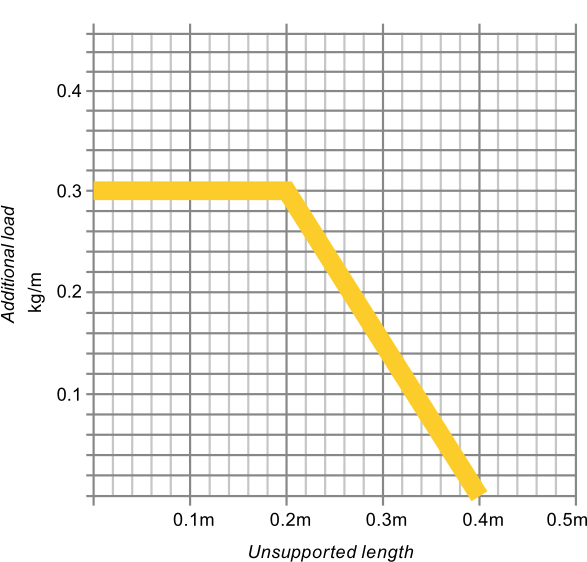

Load Diagram

Load Diagram

End Connector Assembly

Connector 1
